PlantPAx 4.1 P_Din

Introduction to PlantPAx 4.1 P_Din Instruction

The PlantPAx 4.1 P_Din instruction monitors discrete (digital) inputs in your system. The advantage of using a P_Din for each input is that we will display the status of the input for the operator. Another advantage is to ensure the switch has reached it’s target state. In general, there are two steps to make this happen. First, we will add the instruction to the processor logic. Secondly, we will add the HMI object to a display.

Import the Add on Instruction

To begin with the add-on instruction, first we must import this into our Studio 5000 project. Right-click “Add-On Instructions”, and choose “Import Add-On Instruction”.

Be sure to choose the P_Din instruction, then choose “Import”. Obviously for more advanced features (such as in a speed switch), you can choose P_DinAdv.

Add the logic

At this time, we are ready to add the logic for the P_Din instruction to work. I’m going to create a subroutine that is a function block type. Be sure to add the JSR instruction from the MainRoutine.

As long as our instruction imported properly, we should find the P_Din instruction under Add-On instructions in the instruction toolbar. As an illustration, add 4 input references, 1 output reference, and a P_Din instruction.

Finally, download your work to the training processor, and place the processor into remote run mode.

Import the Faceplates

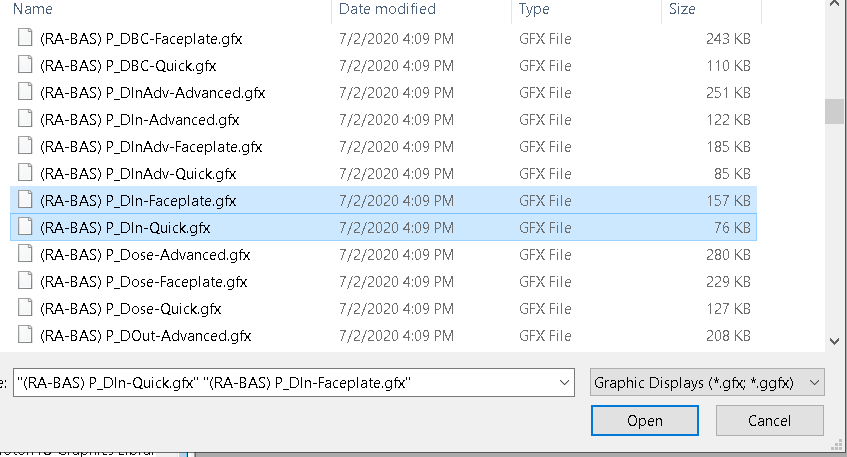

There are a couple faceplates that we want to import for the P_Din instruction. Right click “Displays” under Graphics. Select “Add Component into Application”. Add the faceplates as shown from the GFX folder in your process objects folder.

Add the P_Din HMI object

Our next step is to add the P_Din HMI object onto a display. As I have said, we will point this object to the tag for the P_Din instruction. By default, the tag is a program tag, and we added the instruction into the MainProgram.

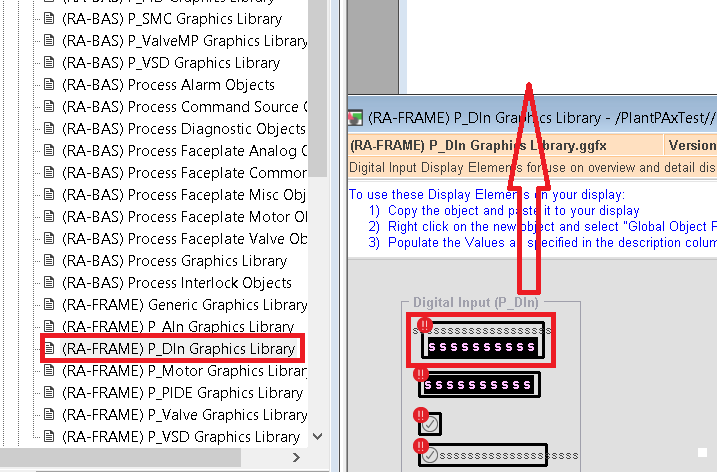

To demonstrate the P_Din object, I created a new display. Locate the P_Din Graphics library under “Global Objects”. Drag the first object onto your new display.

So long as we have already downloaded (and your communication is already configured under FactoryTalk Linx), just right click this new object on your display, and set the global object parameter values.

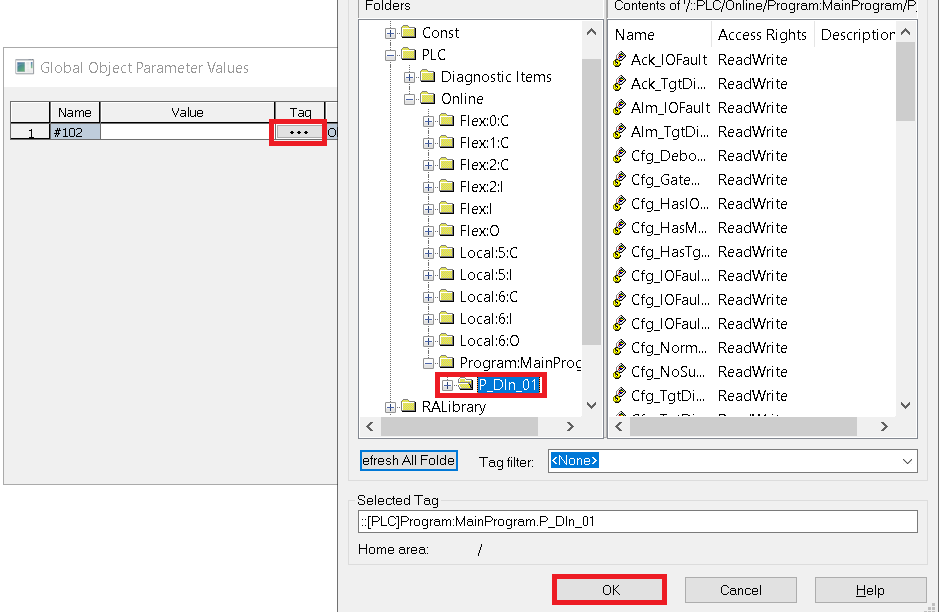

Choose the Ellipsis to browse for the instruction’s tag. In this case, it’s a program tag called P_Din_01. Refresh all folders, then locate the P_Din_01 tag. Click this tag, then press OK.

Save your display screen as “DIN”. At last, we are ready to test the client. Click the “Launch SE Client” icon in the standard toolbar.

Create a new Client Configuration File.

In this case, we’ll leave the name (and path) at default. Press Continue.

Under “Startup Components”, we’ll set the fields as shown. Be sure to select your proper application type. Sooner or later, we’ll set up a startup macro to organize the initial displays. In the meantime, we’ll select the initial display as DIN. Press “Save”, then “Run”.

Your project is now running, and we are displaying the state of the input to the operator.


  • To illustrate, turn the switch on and off. You will see the state of the input change on the display screen.
  • If the gate is on, and the input does not match the target, your object will turn black (instead of gray) to indicate a mismatch.
